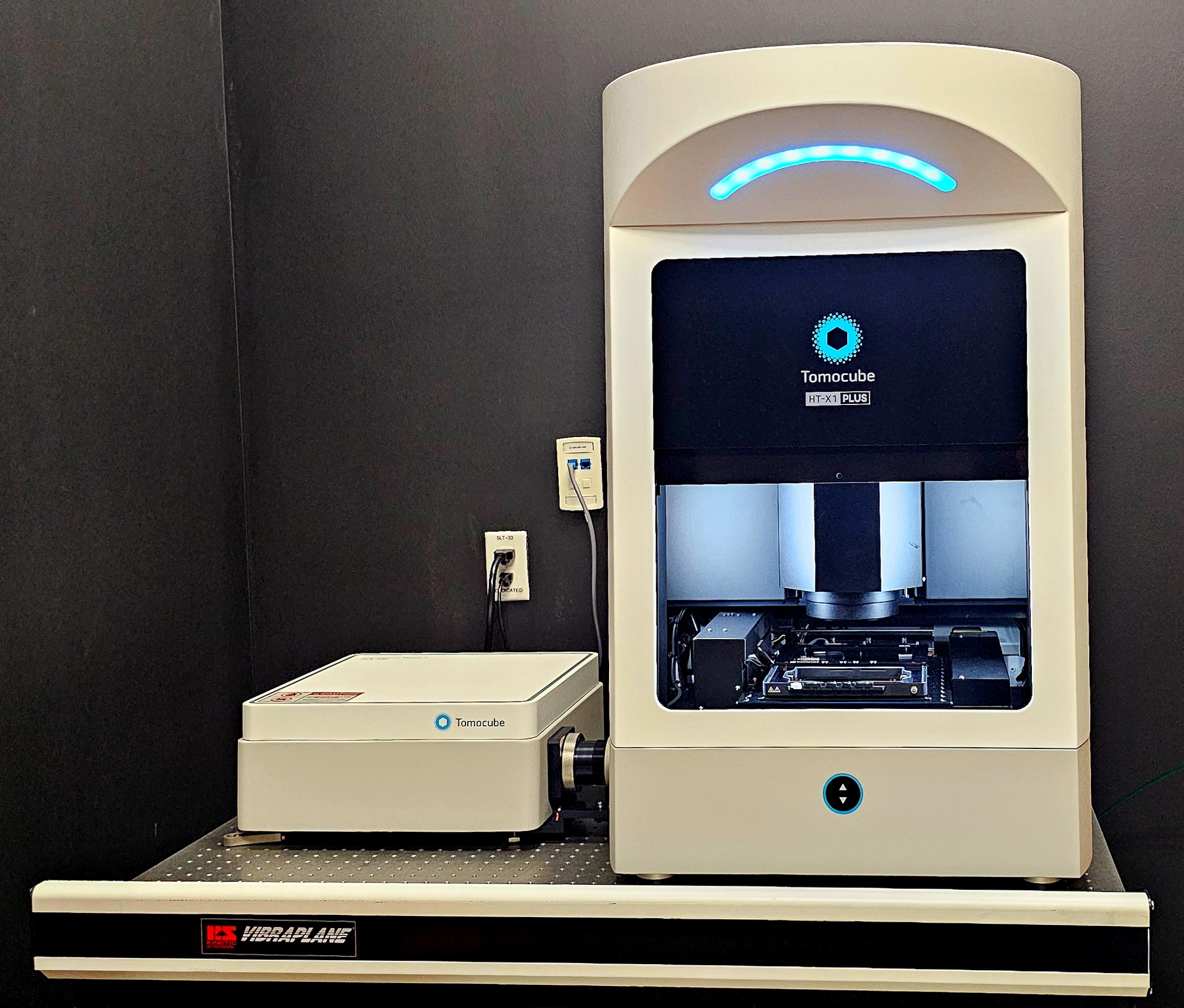

Tomocube HT-X1 Plus (NL5.120S)
Tomocube HT-X1 Plus
Holotomography · Inverted
Label-free 3D holotomography system with fluorescence imaging for live cells, organoids, and tissue.
Manufacturer: Tomocube
Location: NL5.120S
Internal rate: $30/hour
Standard internal rate
Key capabilities: Holotomography: label-free imaging; Widefield fluorescence; 3D refractive-index mapping; Focus stabilization
Technical details
| Imaging modalities | Holotomography; Widefield fluorescence; Brightfield |
|---|---|
| Specimen types | Live cells; Organoids |
| Sample formats | Slides; 35 mm dishes; 50 mm dishes; Multi-well chambers; Microtiter plates |
| Excitation | LEDs: 405; 488; 561; 640 |
| Detectors | 20 MP CMOS |
| Cameras | sCMOS |
| Transmitted light | Label-free refractive-index imaging |
| Environmental control | Live-cell: Yes; temperature: Yes; CO2: Yes; humidity: Yes |
| Special capabilities | 3D refractive-index mapping; Label-free imaging; Focus stabilization |
| Objectives | 40×/0.95 air |
| Recommended applications | Label-free live-cell imaging; Organoids; Tissue; Correlative fluorescence and holotomography |
